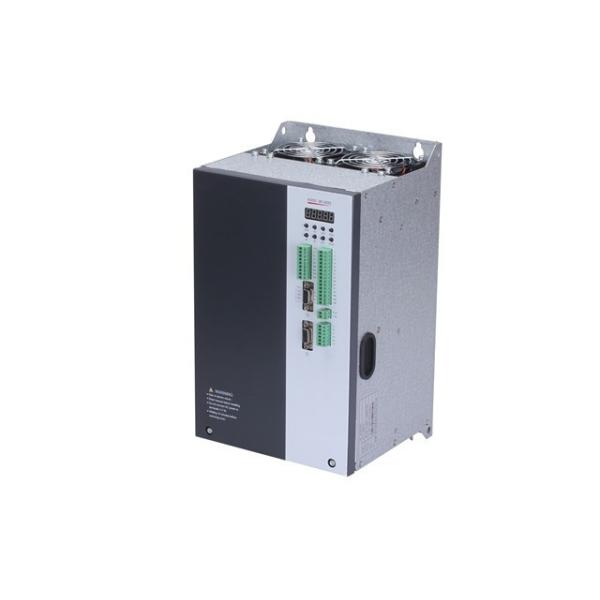

ZK AS850 Series 50 60Hz Universal Servo Drive for AM PMSM Motor

Brand Name : ZK

Model Number : AS850

Certification : CE IEC

Place of Origin : China

MOQ : 1 PCS

Price : 520USD per unit

Payment Terms : T/T, L/C, Western Union

Supply Ability : 800pcs per week

Delivery Time : 5-10days

Packaging Details : Carton box or wooden box

Name : Servo drive

Motor tpye : AM PMSM

Control Mode : Pulse + Direction

Application : Cnc Machine

Contact Now

ZK AS850 series Servo Drive For PMSM Of Injection Molding

AS850 series servo drive for permanent magnet synchronous motor (PMSM), is KEWO own developed hydraulic electric servo drive system for injection molding machine energy saving. It has following advantage, high energy saving, high power factor, quick response and high accuracy control, etc. AS850Z has powerful overload capability even under low speed, 180% rated torque for 30s under 0 speed is possible to ensure good pressure keeping ability.

Output frequency range: 0 to 400Hz.
Input voltage: 3 phase 380V±15%, 2.2kw to 75kw
Pressure signal reference: external analog 0-10V, 0-1A.
Protection function: Input phase missing, input under voltage, over voltage, over current, over load, over heat, external disturbing .
Cooling method: force cooling
Mount: Wall mount
Function features
Energy saving: up to 60% energy saving compare to traditional fixed pump system. 75% is possible be achieved according to difference injection condition.
Lower oil temperature: reduce 5-10 degrees
High repeated accuracy: To achieve high accuracy flow and pressure control
Long pressure holding time: It is favorable for big wall thickness.
Quick response: frequency response up to 50ms.

Items	Description
Input	Rated voltage range	3 phase 380V±15%
Input	rated frequency	50/60Hz
Output	rated voltage range	output 0 to 380V
Output	rated frequency	0.00 to 400.00Hz
mounting	wall mounting with IP20
Cooling method	force cooling
Encoder	Rotary transformer
	Pressure reference	External analog signal (0-10V)
	Flow reference	External analog signal (0-10V)
	pressure feedback	External analgo ( 0-10V or 4-20mA)
	Control input	9 channel insulation input
	control output	3 channel insulation input
	analog output	1 channel output
Protection function	Phase missing input, under voltage input, over voltage input, over current, overload of drive, overheat of motor, external interference encoder fault.
Display	current output display, current rotation, current output current, output voltage, fault alarm, operation parameters, running status.
	using place	Indoor, no sunlight exposure, no dusty, corrosive atmosphere, no flammable gas, no water dip and not salt.
	Environment temperature	"-10 ℃ to 50℃
	Environment humidity	90% below( no condensation)
	shock intensive	0.5g( acceleration) below
	altitude	1000 below.
	Items	Description
Input	Rated voltage range	3 phase 380V±15%
Input	rated frequency	50/60Hz
Output	rated voltafe range	output 0 to 380V
Output	rated frequency	0.00 to 400.00Hz
mounting	wall mounting with IP20
Cool method	force cooling, fans control is available
Encoder	Rotary transformer
	Pressure reference	External analog signal (0-10V)
	Flow reference	External analog signal (0-10V)
	pressure feedback	External analog ( 0-10V or 4-20mA)
	Control input	9 channel insulation input
	control output	3 channel insulation input
	analog output	1 channel output
Protection function	Phase missing input, under voltage input, over voltage input, over current, overload of drive, overheat of motor, external interference, encoder fault.
Display	current output display, current rotation, current output current, output voltage, fault alarm, operation parameters, running status.
	using place	Indoor, no sunlight exposure, no dusty, corrosive atmosphere, no flammable gas, no water dip and not salt.
	Environment temperature	"-10 ℃ to 50℃
	Environment humidity	90% below( no condensation)
	shock intensive	0.5g( acceleration) below
	altitude	1000 below.

ZK AS850 Series 50 60Hz Universal Servo Drive for AM PMSM Motor

Application:

1. Injection molding machine

2. pressure die casting machine

3 . brick machine

4. shoes machinery

5. Pressing machine

6. Aluminum extrusion machine

7. Hydraulic, CNC punching machine

8. Civil engineering machine

9. Other hydraulic machinery
